Horizontal video measuring machine model H4

Horizontal video measuring machine model H4 Specification

Accuracy
2.5 + L/200 m

Measuring Range
X: 300 mm, Y: 200 mm, Z: 150 mm (varies with model)

Number of Specimens
1 (single specimen per measurement)

Max Height
150 mm

Response Time
<1 s

Frequency
50/60 Hz

Power Supply
AC 220V 10%, 50/60Hz

Resolution
0.001 mm

Interface Type
USB, RS232

Port Size
Standard RS232/USB

Operating Voltage
220V

Specimen Size
Max 150 mm (width) 100 mm (height)

Equipment Type
Horizontal Video Measuring Machine

Display Type
HD color monitor with software interface

Mounting Type
Bench Top

Usage
Industrial Quality Control, Laboratory testing

Capacity
Max load 30 kg

Machine Weight
180 kg

Test Width
150 mm

Control Mode
CNC/Manual

Horizontal video measuring machine model H4 Trade Information

Minimum Order Quantity
5 Pieces

Supply Ability
5 Pieces Per Month

Delivery Time
15 Days

Main Domestic Market
All India

About Horizontal video measuring machine model H4

We commenced our business operation as a noteworthy manufacturer and exporter of premium quality Tool Inspection System that is extensively used for the testing of various tools and devices. It is manufactured by our seasoned professionals as per the set industry norms using the most advanced technology. The offered system is available in various technical specifications to meet the diverse needs of the clients. Offered Tool Inspection System is highly appreciated for its sturdiness, excellent performance and long working life.

TECHNICAL SPECIFICATIONS:

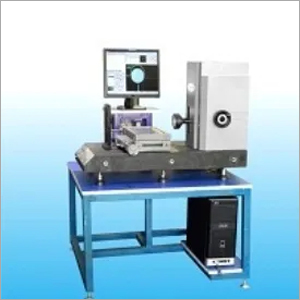

Description Model : TOOLCHECK -200 X.Z Axis Travel 200*100mm Y Axis Focusing Travel 100mm X.Z Axis Resolution 0.001mm Accuracy (3+L/250)um Total Magnification 20X

??266X CCD 430,000 Pixels high definition Sony Chip CCD Measuring Software Special Vision measuring software YR-CSPC Instrument Base 000 grade stable granite base Illumination Surface and contour illumination both use brightness adjustable LED shadowless lamp Machine Weight 150Kgs

Precision Measurement for Industrial Applications

Engineered for accuracy, the H4 Horizontal Video Measuring Machine delivers consistent and reliable measurements, making it indispensable for demanding quality control and laboratory settings. Its modern CNC/manual control system ensures flexibility, while the high-definition display and advanced software enhance usability and speed. Capable of accommodating various specimen sizes up to 150 mm, the Model H4 supports industries as a trusted measuring partner in India and beyond.

Versatile Connectivity and Efficient Operation

With standard USB and RS232 ports, the Model H4 integrates seamlessly with data management systems, supporting fast and secure data transfer. The machine operates on an AC 220V 10% power supply, adaptable for both 50 Hz and 60 Hz frequencies, ensuring compatibility across diverse laboratory and factory environments. Mounting is simple on any bench top, and robust construction guarantees long-term durability.

FAQs of Horizontal video measuring machine model H4:

Q: How does the H4 Horizontal Video Measuring Machine ensure accurate measurements?

A: The H4 utilizes advanced optical technology, high-resolution sensors, and precise motion control to deliver measurements with an accuracy of 2.5 + L/200 m and a resolution of 0.001 mm. Its CNC/manual control mode and HD color software interface help users achieve optimal results every time.

Q: What specimen sizes and weights can be measured with this machine?

A: The H4 can accommodate specimens up to 150 mm in width and 100 mm in height, supporting a maximum specimen weight of 30 kg. Only one specimen is measured at a time, ensuring focused accuracy for each measurement.

Q: When is it advisable to use the CNC mode versus manual mode?

A: CNC mode is ideal for automated, repetitive measurements where consistency and speed are required, while manual mode is suited for custom settings, single measurements, or when detailed user observation is needed.

Q: Where can the H4 measuring machine be installed and used?

A: This bench-top model is suitable for installation in industrial quality control labs, research laboratories, and manufacturing facilities. Its robust build and versatile interface options make it a fit for diverse setups.

Q: What is the typical process for measuring a specimen with the H4?

A: Place your specimen (up to 150 mm 100 mm) on the machine, select CNC or manual control, and use the HD display interface to set measurement parameters. Initiate the measurement process, and results are displayed within 1 second.

Q: How does the H4 benefit quality control and laboratory workflows?

A: By offering precise, rapid, and repeatable measurements with easy data export via USB/RS232, the H4 streamlines quality checks, enhances reliability, and reduces human error, supporting efficient decision-making in production and laboratory environments.
