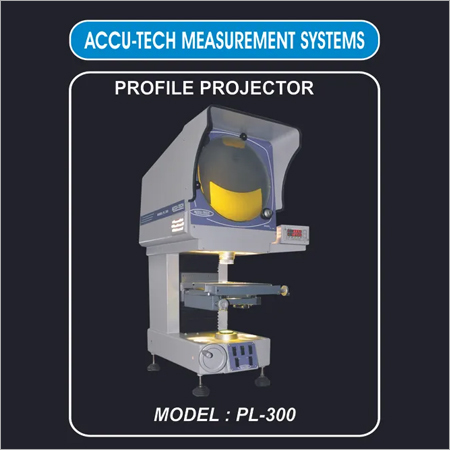

Vertical Profile Projector

Vertical Profile Projector
Vertical Profile Projector
Product Code : PL300
Product Description
SCREEN DAIMETER (mm)   300 ROUND GLASS WITH CROSS LINES
ROTATING RANGE   0 TO 360 DEGREES
ROTATING ANGLE RANGE   1 MINUTE DIGITAL ENCODER
MAGNIFICATION STANDARD    TELECENTRIC OPTICS :10X
STANDARD WORK TABLE   290mm X 175mm
MEASURING RANGE X / Y & Z axis   150mm X 100mm
OPRATION   MANUAL X, Y & Z axis
LINEAR SCALE   GLASS SCALE  RES 0.001mm
SURFACE ILLUMINATION ACCURACY   < 0.05 PERCENTAGE ON SCREEN
PROFILE ILLUMINATION ACCURACY   < 0.075 PERCENTAGE ON SCREEN
SURFACE ILLUMINATION    150W, 24V WITH HEAT FILTER AND FAN COOLED SYSTEMS
PROFILE ILLUMINATION    100W, 24V WITH HEAT FILTER AND FAN COOLED SYSTEMS
SURFACE ILLUMINATION SYSTEMS   DUAL BEAM SPLIT LIGHT SOURCE WITH CONTROL ADJESTMENT
WORK LOAD CAPASITY  4 TO 5 KG
