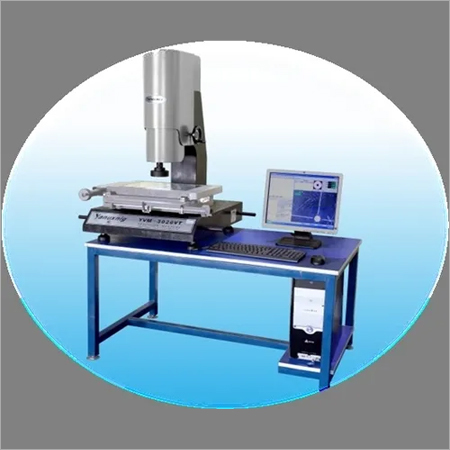

Video Measuring Machine

Video Measuring Machine
Video Measuring Machine
Product Code : 11
Product Description

Our clients can avail high quality Video Measuring Machine that is available in various technical specifications and can be installed easily. It is used in various industries for measuring purposes. Our professionals use high quality components and advanced technology in the manufacturing of this machine. The offered machine is highly appreciated for its long working life, ruggedness, smooth operation and low maintenance. We are offering this Video Measuring Machine at industry leading prices.

Features:

This machine is suitable for all 2D measurements. It is widely used in the industries of machinery, electronics, watch, plastic, module etc. Its functional YR-VT measuring software can realize the functions of all 2D flatness measurements, on the map, profile scanning, special SPC statistics, manual CNC, Macroscopic measurement and so on. Z axis adopts granite column, which makes Z axis non-contact precise measurement and flatness measurement available.

Specifications at a Glance:

Item                     Model

ACCUTECH EasyVision1510

X.Y.Z axis Travel (mm)

150*100*220

X.Y.Z Resolution

 0.001

A X.Y Axis ccuracy

 (3+L/200)um

Repeatability

3um

Measuring mode

Video type

CCD Camera

430,000 Pixels high definition Sony Chip CCD

Magnification

24X-156X (12-312X is available)

Objectives

High definition 0.74.5X zoom lens

Working distance

(video)

Computer (Option)

Computer : Celeron4 CPU, hard drive, memory,  LCD monitor

Measuring Software

Easy Check Measuring software

( it can realize the flatness measurement and the accurate measurement of Z axis )

Lifting Column

Stable granite column

Instrument Base

00 grade stable granite base

Illumination

Surface & contour illumination both use brightness adjustable LED shadow-less  lamp

Dimension (L*W*H)

500*550*950  (mm)

Machine Weight (Kgs)

170
