Home » Products » Horizontal Profile Projectors » Horizontal Profile Measure Projector

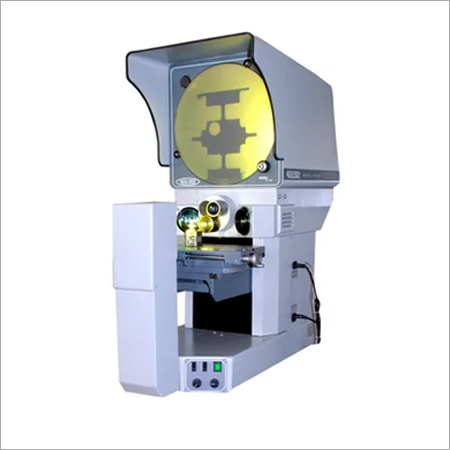

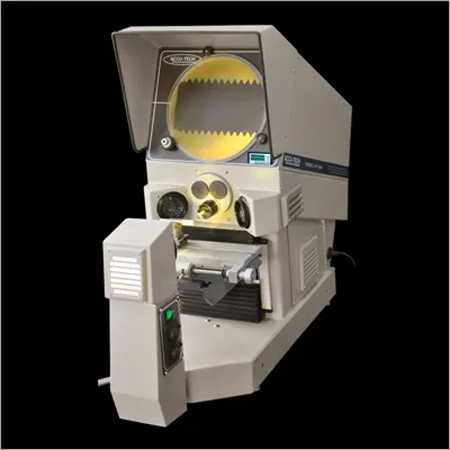

Horizontal Profile Measure Projector

Horizontal Profile Measure Projector
Horizontal Profile Measure Projector
Product Code : HT300
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • Ask For Price
Product Specifications
  • Portable
  • Yes
Product Description

With the help of our professionals, we are capable of manufacturing and exporting highly functional Horizontal Profile Measure Projector that projects an image on a surface. Offered projector is designed using high quality components and the most advanced technology under the supervision of dextrous professionals. Offered product is known for its high performance, low power consumption, clear projection of image and long working life. In order to ensure its flawlessness, the offered Horizontal Profile Measure Projector undergoes stringent tests on various parameters prior to dispatching the delivery from our end.

Horizontal Profile Measure Projector

  • 12"(300mm) Vertical screen for optimum viewing
  • Erect profile image with surface reflection image
  • High resolution ground glass screen with 90 degree cross lines
  • Electronic rotary screen protractor with
  • selectable 1 minute or 1/100 of a degree resolution
  • Coated telecentric parfocal optics
  • Superlative Surface Illumination
  • Hard chrome plated, hardend and ground workstage
  • Solid crossed roller stage system
  • Medium Duty Milling Machine type Work Stage of 400mm X110mm, with
  • Helix Angle Tilt / Setting of 20 Degree (+/-)
  • 220mm X Axis travel with glide release
  • 100mm Y Axis travel (UP & DOWNl
  • 90 lbs. Capacity
  • Contour Illumination-150W, 24V with Fan cooled system
  • Surface Illumination-150W, 24V  2 nos. with Fan cooled system
  • Available with external edge sensing
  • Standard swing away lamp house arm
  • Optional motorized Work stage and
  • Computer controlled Readout Systems
  • 10X Lens system included
  • NIST / NABL traceable calibration certificate
  • 1 Year warranty
  • Light Path : Horizontal
  • Ground Glass Screen with cross-lines : Dia300mm
  • Rotating range : 0-360degree
  • Rotating angle scale : 1'
  • Accuracy of X,Y Coordinate : (3+L/55)um
  • Magnifications - Standard, Coated Telecentric Lens : 10x mounted on indexing turret designed for 3 Optics
  • Optional Coated Telecentric Lenses : 20x, 50x
  • Work Stage Size (mm) : 400X110
  • Measuring range (mm) : 220 X 110
  • Linear scale resolution Standard : 0.001mm/.00005
  • Z axis (Focusing) : Manual; Optional : Motorized
  • Contour Illumination Accuracy : < 0.05% on screen
  • Surface Illumination Accuracy : < 0.075% on screen
  • Illumination System : Dual Beam Split Light source with Light Control Intensifiers system to adjust bright surface Illumination Contrast for clear and sharp display on Screen, All bulbs are individually fan cooled for minimum heat
  • Standard Measuring System : Digital Read Out to measure X, Y, Angle and Radius
  • Optional Advance Measuring System : Metronics USA Quadrachek 221 Micro Processor Data Processor.
  • PC based Measurement System for geometrical measurement
Trade Information
  • Payment Terms
  • Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T)
  • Supply Ability
  • 8 Per Month
  • Delivery Time
  • 15 Days
  • Packaging Details
  • wooden box
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • UKAS CALIBRATION STANDARDS
