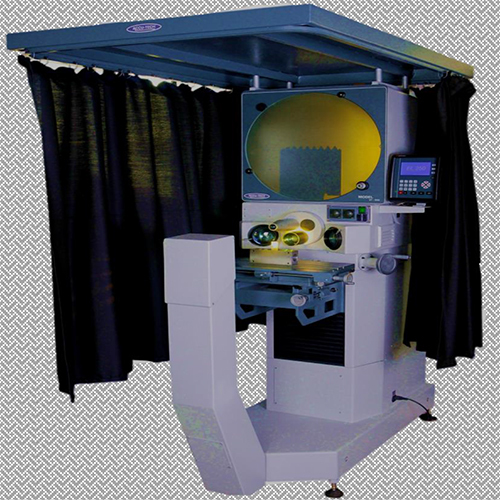

Horizontal Profile Projectors HT 500H

Horizontal Profile Projectors HT 500H Specification

Illumination
Surface and profile illumination with adjustable intensity

Accuracy
0.005mm

Working Area
500mm screen diameter

Use
Dimensional inspection

Portable
Yes

Brightness
Bright, uniform

Resolution
0.001mm

Projection Distance
Varies as per magnification

Lamp
Halogen lamp, 24V/150W

Lens
High precision objective lens

Contrast Ratio
High, for clear projection contrast

Pictures Size
250w x 1

Keystone
Manual correction

Power
1200w Watt (w)

Voltage
220V AC, 50Hz

Horizontal Profile Projectors HT 500H Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
5 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Horizontal Profile Projectors HT 500H

Discover the hot-selling Horizontal Profile Projectors HT 500HIndias latest, masterful solution for high-precision measurement and inspection. Virtuoso engineering delivers glorious accuracy with magnification options of 10X, 20X, and 50X. The fine ground glass screen and robust 200mm x 150mm table travel are perfect for versatile use. Personalise your analysis using RS-232/USB output and standard accessories like green filter, hood, and tool kit. Portable and engineered for excellence, this glorious tool empowers distributors, exporters, importers, manufacturers, and service providers with effortless precision and superior performance.

Versatile Applications and Users

The Horizontal Profile Projectors HT 500H is ideal for precision measurements in engineering, toolrooms, and quality control labs. Used by virtuosos across manufacturing, automotive, and aerospace sectors, its essential for inspecting gears, dies, and intricate parts. Suitable for both specific and general applications, this glorious instrument streamlines visual inspection and measurement, enhancing operational accuracy across various disciplines.

Payment, Exchange, and Transport Policies

Acquiring the HT 500H involves transparent expenditure terms, with payment accepted via conventional methods. Goods transport is arranged from the FOB port in India, ensuring safe and timely delivery. Exchange and sample policies are clear; samples may be provided upon request with client expenditure, fostering informed procurement decisions for both distributors and exporters.

HT 500 H

Screen dia	500mm
Magnification
Standard	10x
Optional	20x 50x 100x
Work stage	500 x 200mm
Stroke	350 x 200mm
Resolution	0.001mm
Illumination
Profile	250w x 1
Surface	250w x 2
Illumination accuracy
Profile	-/+ 0.05%
surface	-/+ 0.075%
Load capacity	45kg
Mass	550kg
Power	1200w

FAQs of Horizontal Profile Projectors HT 500H:

Q: How can the Horizontal Profile Projectors HT 500H be personalised for specific use cases?

A: The HT 500H can be customised with various magnification lenses (10X, 20X, 50X) and accessories to suit diverse inspection requirements. RS-232/USB data output supports integration into individual workflows.

Q: What industries benefit most from using the HT 500H?

A: Industries like engineering, manufacturing, automotive, and aerospace find the HT 500H invaluable for its masterful precision in inspecting gears, dies, and complex profiles.

Q: Where is the HT 500H typically used?

A: It is commonly employed in toolrooms, research labs, and quality assurance departments for both specific, detailed inspections and general measurement tasks.

Q: How does the payment and goods transport process work for this product?

A: After confirming expenditure, goods are shipped from Indias FOB port, with sample policies available for preliminary evaluation. Payments are accepted through standard channels.
