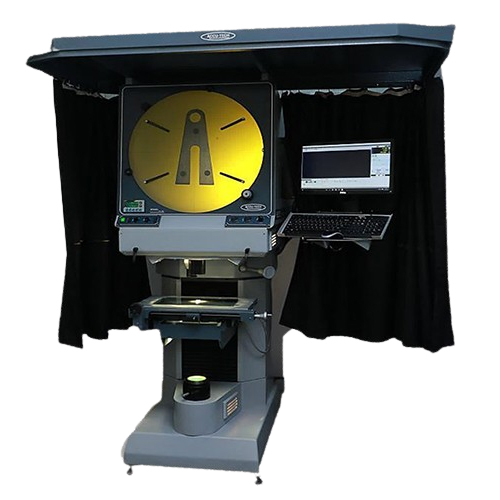

Vertical Profile Projectors VT 500H For Metallurgical Measurement

Vertical Profile Projectors VT 500H For Metallurgical Measurement Specification

Illumination
Incident and transmitted LED/Halogen lighting

Accuracy
0.005 mm

Working Area
150 mm x 100 mm

Use
Dimensional and profile inspection

Portable
No

Brightness
Adjustable illumination for high clarity

Resolution
0.001 mm (micrometer measurement)

Projection Distance
Standard setup for sharp focus on screen

Lamp
Halogen lamp 24V/150W

Lens
Projection lens with different magnification options

Contrast Ratio
High, suitable for fine metallurgical detail

Pictures Size
500 mm (screen diameter)

Keystone
15 manual/vertical

Power
160 W

Voltage
220-240 Volt (v)

Measurement Method
Micrometer head & digital counter

Table Travel (X/Y)
150 mm / 100 mm

Screen Type
Fine ground glass with digital protractor scale

Overall Size
870 mm x 550 mm x 1100 mm

Focus Adjustment
Coarse and fine adjustment

Stage Glass Size
170 mm x 170 mm

Magnification Range
10X, 20X, 50X, (other options available)

Maximum Height of Workpiece
80 mm

Net Weight
About 120 kg

Stage Load Capacity
Max. 3 kg

Rotary Table
360 rotatable, vernier scale 1'

Display
Digital and analogue scales

Vertical Profile Projectors VT 500H For Metallurgical Measurement Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
5 Units Per Day

Delivery Time
6 Days

Main Domestic Market
All India

About Vertical Profile Projectors VT 500H For Metallurgical Measurement

Discover the hot-selling Vertical Profile Projectors VT 500H-an enviable choice for demanding metallurgical measurements. This premier instrument features a special fine ground glass screen with a digital protractor, exceptional accuracy down to 0.005 mm, and a versatile magnification range (10X, 20X, 50X-other choices available). The robust 360 rotary table, adjustable halogen/LED lighting, and digital/analogue display make inspection thorough, efficient, and affordable. Engineered for professionals, it boasts a noble design with sturdy construction and is ideal for distributors and manufacturers seeking reliable profile and dimensional inspection.

Specific and General Applications: Who Uses VT 500H and For What?

The Vertical Profile Projectors VT 500H are designed for both specialized and general use in metallurgical measurement labs. Used predominantly by quality control professionals, researchers, and manufacturers, they are key for precise dimensional and profile inspections of metal components. The instrument supports routine and advanced analysis, ensuring product integrity and compliance in industries like automotive, aerospace, and industrial equipment manufacturing. Its versatility and accuracy make it indispensable for those demanding reliable results.

Secure Delivery, Flexible Payment and Reliable Supply

Our VT 500H projectors are dispatched with secure shipping to ensure safe arrival. Once your purchase order is confirmed, each unit is promptly prepared for delivery, carefully packed, and handed over to trusted couriers. Payment terms are flexible, accommodating major transaction methods for exporter, importer, or distributor transactions. With robust supply ability, we cater to orders of all sizes, ensuring timely fulfillment for clients across India and beyond.

FAQ's of Vertical Profile Projectors VT 500H For Metallurgical Measurement:

Q: How does the VT 500H ensure accurate metallurgical measurement?

A: The VT 500H features fine ground glass with a digital protractor scale, precision micrometer adjustment, and high-contrast illumination, delivering accuracy up to 0.005 mm for detailed and reliable measurement of metal components.

Q: What industries commonly use the VT 500H Vertical Profile Projector?

A: Industries such as automotive, aerospace, metallurgy, and precision manufacturing commonly utilize the VT 500H for profile and dimensional inspections due to its high accuracy and robust engineering.

Q: What magnification options and measurement methods does the VT 500H offer?

A: The VT 500H comes with standard magnification options of 10X, 20X, and 50X, and can accommodate additional lenses. It supports micrometer head measurements with a digital counter for utmost precision.

Q: How is the delivery of the VT 500H handled after purchase?

A: Following the placement of a purchase order, the VT 500H is securely packaged and handed over to reliable shipping partners. Secure shipping practices ensure the product arrives safely at your facility.

Q: Where is the VT 500H manufactured and who can order it?

A: Manufactured and supplied by reputable companies in India, the VT 500H is available to distributors, exporters, importers, manufacturers, and service providers both within India and internationally.

Q: What are the benefits of using adjustable illumination and high contrast projection in the VT 500H?

A: Adjustable halogen and LED illumination with high contrast enables users to clearly observe fine metallurgical details, significantly improving inspection reliability across various sample types.
