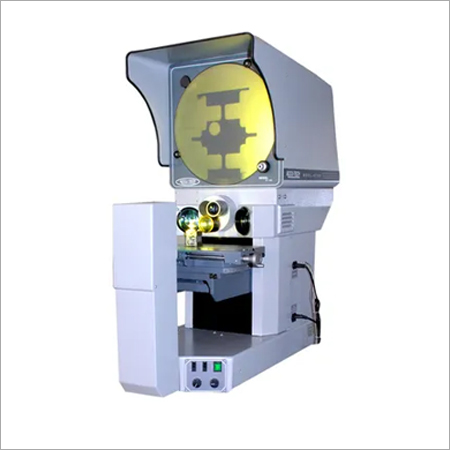

Horizontal Profile Projectors
Product Details:
- Portable Yes
- Click to View more
X
Horizontal Profile Projectors Price And Quantity
- 1 Unit
Horizontal Profile Projectors Product Specifications
- Yes
Horizontal Profile Projectors Trade Information
- 10-15 Days
Product Description
We hold expertise in manufacturing and exporting superior quality Horizontal Profile Projectors that project a video signal from computer, home theater system and other. These are designed using innovative technology and are available in different technical specifications to meet the diverse needs of the clients. Our quality controllers test the offered products on various parameters in ahead of dispatching the delivery from our end to ensure their flawlessness. The offered product can work in adverse working conditions and require less maintenance.
Horizontal Profile Projectors features
- 16"(400mm) Vertical screen for optimum viewing
- Erect profile image with surface reflection image
- High resolution ground glass screen with 90 dgree cross lines
- Electronic rotary screen protractor with
- selectable 1 minute or 1/100 of a degree resolution
- Coated telecentric parfocal optics
- Superlative Surface Illumination
- Nickel plated, completely cast iron work stage
- Solid crossed roller stage system
- Medium Duty Milling Machine type Work Stage of 450mm X 180mm, with Helix
- Angle Tilt / Setting of 20 Degree (+/-)
- 320mm X Axis travel with glide release
- 150mm Y Axis travel (UP & DOWN)
- 110 lbs. Capacity
- Contour Illumination-150W, 24V with Fan cooled system
- Surface Illumination-150W, 24V 2 nos. with Fan cooled system
- Available with external edge sensing
- Standard swing away lamp house arm
- Optional motorized Work stage and Computer controlled Readout Systems
- 10X Lens system included
- NIST / NABL traceable calibration certificate
- 1 Year warranty
Horizontal Profile Projectors Specifications
- Light Path : Horizontal
- Ground Glass Screen with cross-lines : Dia400mm
- Rotating range : 0-360diameter
- Rotating angle scale : 1'
- Accuracy of X,Y Coordinate : (3+L/55)um
- Magnifications - Standard, Coated Telecentric Lens: 10x mounted on indexing turret designed for 3 Optics
- Optional Coated Telecentric Lenses : 20x, 25x,50x,100x
- Work Stage Size (mm) : 450X180
- Measuring range (mm) : 320 X 150
- Linear scale resolution Standard : 0.001mm/.00005
- Z axis (Focusing) : Manual; Optional : Motorized
- Contour Illumination Accuracy : < 0.05% on screen
- Surface Illumination Accuracy : < 0.075% on screen
- Illumination System : Dual Beam Split Light source with Light Control Intensifiers system to adjust bright surface Illumination Contrast for clear and sharp display on Screen, All bulbs are individually fan cooled for minimum heat
- Standard Measuring System : Digital Read Out to measure X, Y, Angle and Radius
- Optional Advance Measuring System : Metronics USA Quadrachek 221 Micro Processor Data Processor.
Brand | Accutech |
Resolution | 0.001 mm |
Work Stage | 500 X 200 mm |
Stroke | 350 X 200 mm |
Standard | 10X |
Screen Dia | 500 mm |
Power | 1200 W |
Optional | 20x / 50x / 100x |
Model | HT-500H |
Mass | 550 kg |
Load Capacity | 45 kg |
Illumination Surface | 250W X 2 |
Illumination Profile | 250W X 1 |
PC based Measurement System for geometrical measurement
