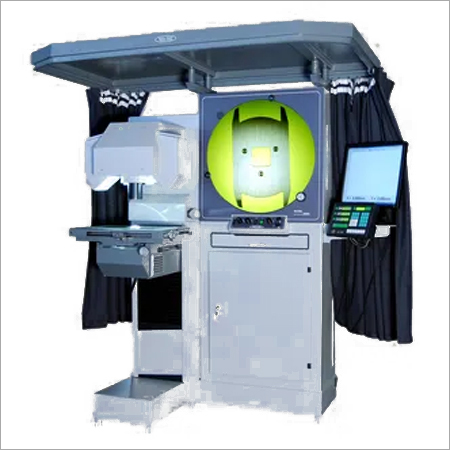

Vertical Profile Projectors Model VT 600

Vertical Profile Projectors Model VT 600 Specification

Accuracy
0.002mm

Working Area
150mm x 100mm

Type
Optical Profile Projector

Use
Engineering, Tool Room, Metrology

Portable
No

Resolution
0.0005mm

Lamp
Halogen, 24V/150W

Lens
Screen Diameter 600mm

Pictures Size
300mm

Power
200W

Voltage
220V AC

Vertical Profile Projectors Model VT 600 Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
5 Pieces Per Month

Delivery Time
5 Days

Main Domestic Market
All India

About Vertical Profile Projectors Model VT 600

Our proficiency in this domain enables us to become the prominent manufacturer and exporter of high quality Vertical Projectors that can be easily installed and require low maintenance. These are designed by our professionals after doing rigorous tests on various parameters such as strength, power consumption and others. The offered projectors are known for their robustness, smooth operations and low maintenance. Our precious clients can avail these Vertical Projectors at industry leading prices.

Features

24"(600mm) Vertical screen for optimum viewing
Surface reflection image
High resolution ground glass screen with calibration reticle, 90 degree
cross Broken lines
Electronic rotary screen protractor with selectable 1 minute
Coated telecentric parfocal optics
Quick change indexable Multi Lens mount on Turret
Dual Beam surface illumination
Satin Chrome Plated Workstage
Solid crossed roller stage system
300mm X Axis travel with glide release
200mm Y Axis travel with glide release
110 lbs. Capacity
True parfocal Lens Mounted on Indexable Space Saving Turret
Available with external edge sensing
Optional motorized Workstage and
Computer controlled Readout Systems
Contour Illumination :250W, 24V with Fan Cooled System
Surface Illumination:250W, 24V :2nos. With Fan Cooled System
10X Lens system included
NIST / NABL traceable calibration certificate
1 Year warranty

Technical description

Light Path : Vertical
Ground Glass Screen with cross-lines : Dia600mm
Rotating range : 0-360degree
Rotating angle scale : 1
Accuracy of X,Y Coordinate : (3+L/55)um
Magnifications - Standard, Coated Telecentric Lens: 10x mounted on indexing turret designed for 4 Optics
Optional Coated Telecentric Lenses : 5x,20x,25x, 50x ,100X
Work Stage Size (mm) : 500 X 350
Measuring range (mm) : 300X 200
Linear scale resolution Standard : 0.001mm/.00005
Z axis (Focusing) : Manual; Optional : Motorized
Contour Illumination Accuracy : < 0.05% on screen
Surface Illumination Accuracy : < 0.075% on screen
Illumination System : Dual Beam Split Light source with Light Control Intensifiers system to adjust bright surface Illumination Contrast for clear and sharp display on Screen, All bulbs are individually fan cooled for minimum heat
Standard Measuring System : Digital Read Out to measure X, Y, Angle and Radius
Optional Advance Measuring System : Metronics USA Quadrachek 221 Micro Processor Data Processor.

Illumination Profile	250W X 1
Brand	Accutech
Resolution	0.001 mm
Work Stage	500 X 350 mm
Stroke	400 X 200 mm
Standard	10X
Screen Dia	600 mm
Power	1200 W
Optional	20x / 50x / 100x
Model	VM-600H
Mass	700 kg
Load Capacity	35 kg
Illumination Surface	250W X 2

PC based Measurement System for geometrical measurement

Exceptional Optical Precision

The VT 600 projector provides outstanding measurement accuracy thanks to its 0.0005mm resolution and 0.002mm accuracy. Its 600mm diameter screen enhances visualization for critical engineering and metrology assessments. Suited for tool rooms and inspections, the projectors large working area (150mm x 100mm) accommodates varied components.

Designed for Industrial Workspaces

Engineered specifically for fixed installations, this non-portable instrument is built to meet requirements in demanding tool rooms and measurement labs. Its rugged construction and advanced optics ensure reliable performance in professional settings, serving industries throughout India via a robust network of distributors and service providers.

FAQs of Vertical Profile Projectors Model VT 600:

Q: How does the VT 600 Vertical Profile Projector enhance measurement accuracy?

A: The VT 600 projector achieves high measurement accuracy with its fine 0.0005mm resolution and precision of 0.002mm, making it ideal for detailed engineering and metrology work where exact measurements are critical.

Q: What types of applications is the VT 600 best suited for?

A: This model is designed for use in tool rooms, engineering environments, and metrology labs where precise optical profiling and component inspection are essential.

Q: When should the halogen lamp be replaced in the VT 600 projector?

A: The 24V/150W halogen lamp should be replaced when it begins to dim or fails to illuminate the screen adequately. Regular maintenance schedules based on manufacturer recommendations help ensure consistent lighting quality.

Q: Where can the VT 600 profile projector be purchased in India?

A: The VT 600 is available through authorized distributors, exporters, importers, manufacturers, and service providers throughout India. Contact these channels for product availability and after-sales support.

Q: What is the process for conducting measurements with the VT 600?

A: To perform measurements, position the component on the working area, focus the projected image using the optical lens, and utilize the projectors screen and micrometric controls to obtain precise dimensional readings.

Q: How is the VT 600 powered, and what are its power requirements?

A: The projector operates on a standard 220V AC supply and consumes 200W of power, making it compatible with typical industrial electrical setups while ensuring stable operation during extended use.

Q: What are the main benefits of using the VT 600 Optical Profile Projector?

A: Users gain from its high-resolution, large viewing screen, robust measurement accuracy, and reliable performance, all contributing to improved productivity and quality assurance in industrial and metrological applications.
