Optical Profile Projectors

Optical Profile Projectors
Optical Profile Projectors
Product Code : VT200
Product Description

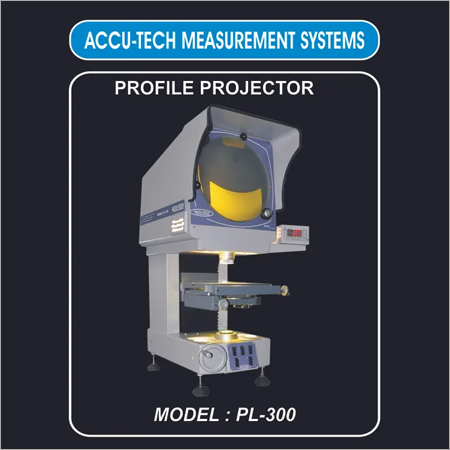

Optical Profile Projectors

We are one of the prominent manufacturers and exporters of highly functional Optical Profile Projectors that are available in various technical specifications to meet the diverse needs of the clients. The offered projectors are highly demanded in offices, banks, schools and at other places for projecting images and videos on screen. Offered projectors are highly acknowledged for their robust design, high strength, low maintenance and smooth operation. In ahead of dispatching these Optical Profile Projectors at clients' end, our quality controllers test the offered products on various parameters to ensure their flawlessness.

Features

  • 8"(200mm) Vertical screen for optimum viewing
  • Surface reflection image
  • ground glass screen with calibration reticle, 90 degree with cross lines
  • Electronic rotary screen protractor with selectable 1 minute
  • Coated telecentric parfocal optics
  • Dual Beam surface illumination
  • Satin Chrome Plated Workstage
  • Solid crossed roller stage system
  • 75mm X Axis travel
  • 75mm Y Axis travel
  • 90 lbs. Capacity
  • Available with external edge sensing
  • Optional Computer controlled Readout Systems
  • Contour Illumination :100W, 12V Fan Cooled System
  • Surface Illumination:100W, 12V :2nos. Fan Cooled System
  • 10X Lens system included
  • NIST / NABL traceable calibration certificate
  • 1 Year warranty

Technical description

  • Light Path : Vertical
  • Ground Glass Screen with cross-lines : dia200mm
  • Rotating range : 0-360degree
  • Rotating angle scale : 1'
  • Accuracy of X,Y Coordinate : (3+L/55)um
  • Magnifications - Standard, Coated Telecentric Lens : 10x
  • Optional Coated Telecentric Lenses : 20x, 50x ,100X
  • Work Stage Size (mm) : 175 X 175
  • Measuring range (mm) : Standard: 25x25mm
  • Optional: 50x50mm/75x75mm
  • Linear scale resolution Standard : 0.001mm/.00005
  • Z axis (Focusing) : Manual;
  • Contour Illumination Accuracy : < 0.05% on screen
  • Surface Illumination Accuracy : < 0.075% on screen
  • Illumination System : Dual Beam Split Light source with Light Control Intensifiers system to adjust bright surface Illumination Contrast for clear and sharp display on Screen, All bulbs are individually fan cooled for minimum heat
  • Standard Measuring System : Micrometer
  • Optional Advance Measuring System : Digital Read Out to measure X, Y, Angle and Radius
